CONSTRUCTION PARAMETERS:
INSULATION: Flame retardant Cross-Linked Polyethylene (XLPE)
INSULATION COLOR: Black and Red
PRODUCT FEATURES:
TEMPERATURE RATINGS: 90°C Dry, 90°C Wet. Rated for direct burial, moisture resistant, meets cold bend & cold impact test at -40°C
VOLTAGE RATING: 2,000 V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31 (A) and other applicable parts of the National Electrical Code (NEC), NFPA 70
STANDARDS & APPROVALS:
UL 44 Type RHH/RHW-2, 2000V, UV/Sunlight Resistant
UL 854 Type USE-2
UL 4703 Type PV
ASTM B800 , B801, B836
Flame Test: UL 1581 VW-1
Sizes 1/0 AWG and larger rated for CT use
ROHS, EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TLCP method
SPECIFICATIONS

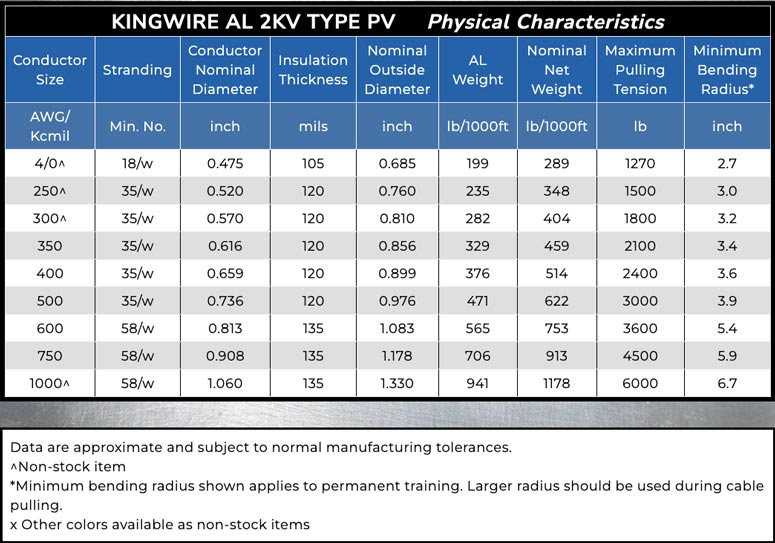

KINGWIRE AL 2KV TYPE PV Physical Characteristics |
||||||||
| Conductor Size | Stranding | Conductor Nominal Diameter | Insulation Thickness |
Nominal Outside Diameter |
AL Weight | Nominal Net Weight | Maximum Pulling Tension | Minimum Bending Radius* |
| AWG/Kcmil | No. | inch | mils | inch | lb/1000ft | lb/1000ft | lb | inch |
| 300^ | 36/w | 0.570 | 120 | 0.810 | 282 | 412 | 1800 | 3.2 |
| 350 | 36/w | 0.614 | 120 | 0.854 | 329 | 479 | 2100 | 3.4 |
| 400 | 36/w | 0.657 | 120 | 0.897 | 377 | 548 | 2400 | 3.6 |
| 500 | 36/w | 0.736 | 120 | 0.976 | 471 | 685 | 3000 | 3.9 |
| 600 | 60/w | 0.813 | 135 | 1.083 | 565 | 822 | 3600 | 5.4 |
| 750 | 60/w | 0.908 | 135 | 1.178 | 706 | 1027 | 4500 | 5.9 |
Notes:
All dimensions and weights are subject to industry standards and tolerance unless otherwise noted.
^Non-stock item
*Minimum bending radius shown applies to permanent training. Larger radius should be used during cable pulling.

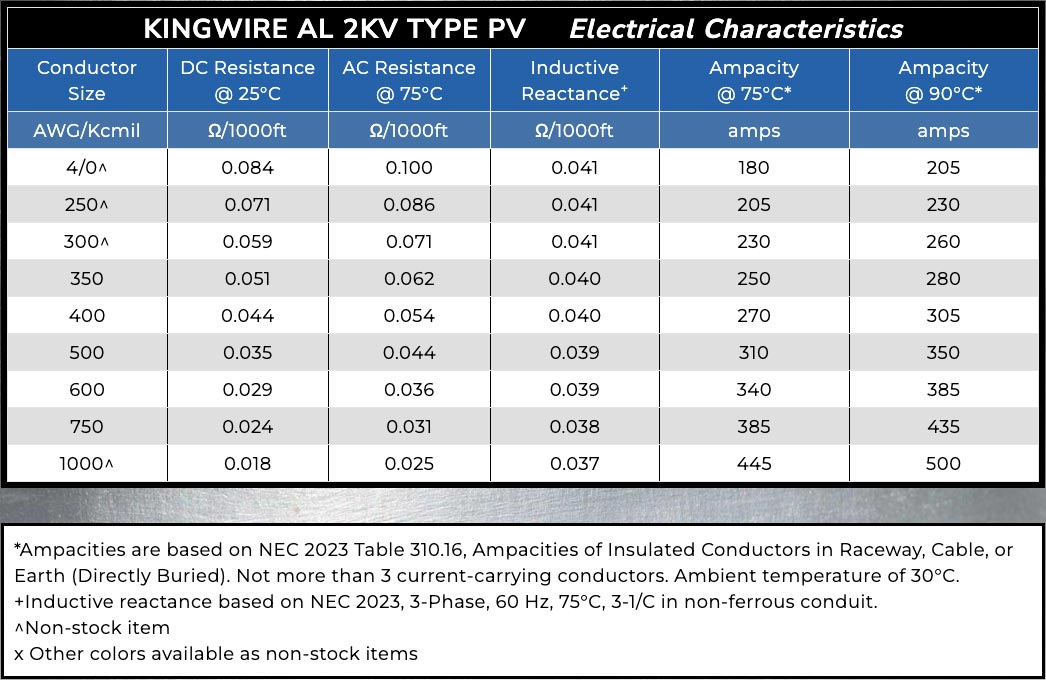

KINGWIRE AL 2KV TYPE PV Electrical Characteristics |
|||||
| Conductor Size | DC Resistance @ 25°C |
AC Resistance @ 75°C |
Inductive Reactance+ | Ampacity @ 75°C* |
Ampacity @ 90°C* |
| AWG/Kcmil | Ω/1000ft | Ω/1000ft | Ω/1000ft | amps | amps |
| 300^ | 0.059 | 0.071 | 0.041 | 230 | 260 |
| 350 | 0.051 | 0.062 | 0.040 | 250 | 280 |
| 400 | 0.044 | 0.054 | 0.040 | 270 | 305 |
| 500 | 0.035 | 0.044 | 0.039 | 310 | 350 |
| 600 | 0.029 | 0.036 | 0.039 | 340 | 385 |
| 750 | 0.024 | 0.031 | 0.038 | 385 | 435 |
Notes:
*Ampacities are based on NEC 2023 Table 310.16, Ampacities of Insulated Conductors in Raceway, Cable, or Earth (Directly Buried). Not more than 3 current-carrying conductors. Ambient temperature of 30°C.
+Inductive reactance based on NEC 2023 Table 9, 600-Volt Cables, 3-Phase, 60 Hz, 75°C, 3-1/C in non-ferrous conduit.
^Non-stock item
