CONSTRUCTION PARAMETERS:
Type MV-105 5kV-35kV EPR/CTS/PVC Power
(Copper or Alum.) 100% or 133% IL

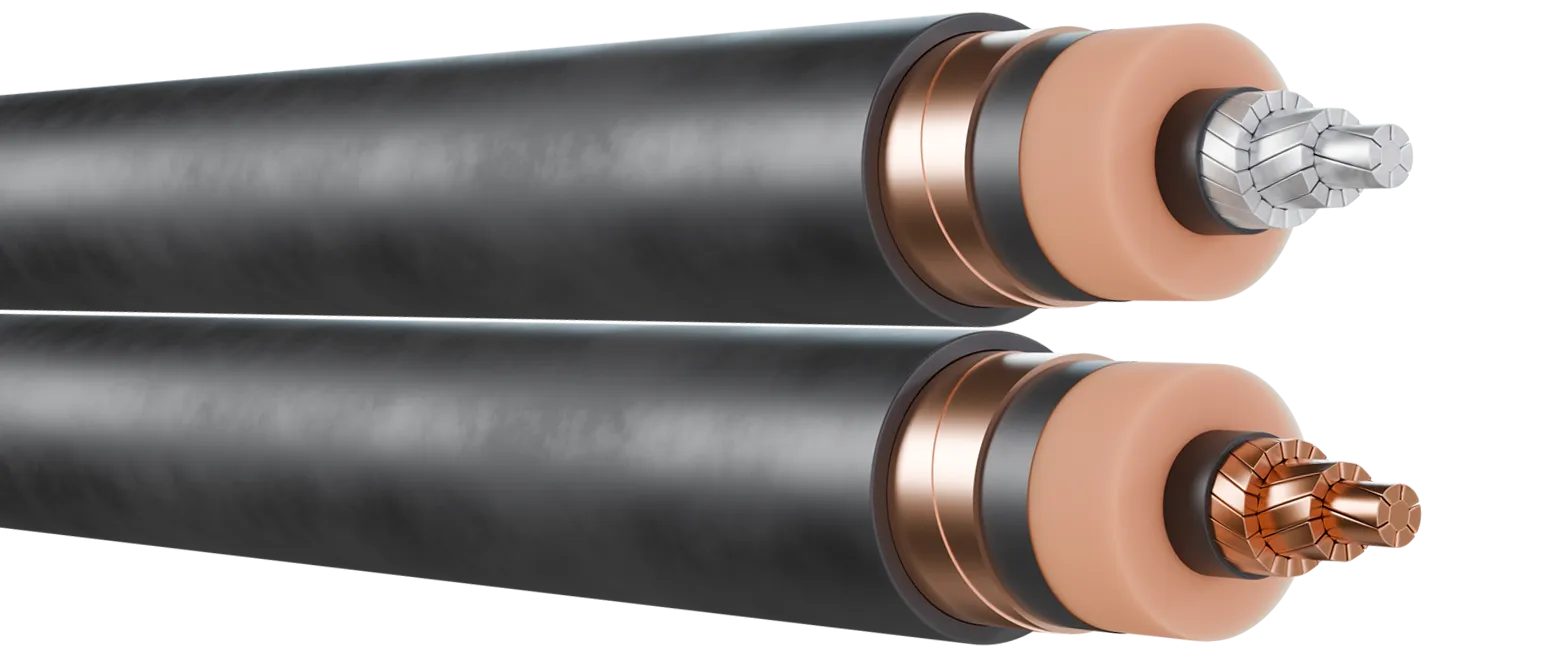

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper or aluminum (filled or unfilled) Class B stranded compressed or compact conductors
INSULATION: Covered with ethylene propylene rubber (EPR), copper tape shield, and black 105 °C PVC jacket.
INSULATION COLOR: Black
PHYSICAL PROPERTIES:
TEMPERATURE RANGE: Designed to operate continuously at a conductor temperature not exceeding
- 105°C for normal operations
- 140°C for emergency overload
- 250°C for short circuit
Excellent sunlight resistance
ELECTRICAL PROPERTIES
VOLTAGE RATING: For CT USE for 1/0 AWG and larger, per UL® 1072 Available in 2 AWG through 1000 KCMIL
STANDARDS:
ASTM B800 for 8000 series aluminum alloy wire for electrical purposes
ASTM B901 for compressed round stranded aluminum conductors
ASTM B400 for compact round concentric-lay-stranded aluminum conductors
AEIC CS8 Specification for Extruded Dielectric, shielded power cables rated 5 through 46kV
ANSI/ICEA S-94649 standard for concentric neutral cables (UL) 1072 Medium Voltage Power Cable
SPECIFICATIONS
KINGWIRE MEDIUM VOLTAGE POWER CABLE |
||||||
| Metal Type | Copper or Aluminum | |||||
| Voltage | 15 – 25 – 35 KV | |||||
| Conductor | Compacted | |||||
| Temperature | MV-105 | |||||
| Insulation | EPR | |||||
| Insulation Level | 133% | |||||
| Neutral | CU Tape | |||||
| Concentric Neutral | Full and Reduced | |||||
| Jacket | PVC | |||||
Notes:
Specifications contained herein reflect current data and are subject to change. Values are nominal and/or approximate.
