APPLICATION
Directly buried or installed in ducts for 600 volt secondary distribution. Suitable for NEC- and non-NEC-compliant installations with a maximum conductor temperature of 90°C in wet or dry locations.
PRODUCT FEATURES
Concentric stranded compressed 1350-H19 aluminum conductor, crosslinked polyethylene (XLPE) insulation. Phase conductors are black and surface printed; neutral conductor is black, surface printed, and identified by three extruded yellow stripes.
STANDARDS:
UL Standard 854 for Type USE-2
ASTM B230 and B231
ICEA S-105-692
Federal Specification A-A59544 (formerly J-C-30B)
SPECIFICATIONS

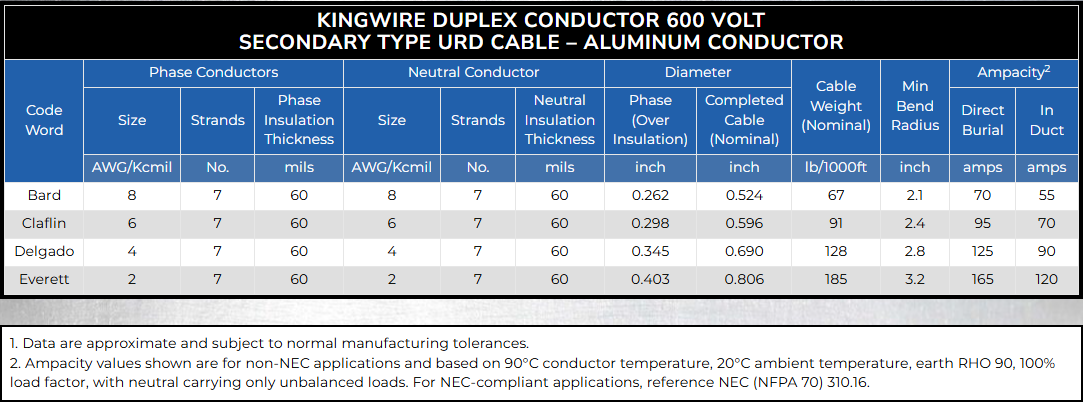

KINGWIRE DUPLEX CONDUCTOR 600 VOLT
|
||||||||||||
| Code Word | Phase Conductors | Neutral Conductor | Diameter | Cable Weight (Nominal) | Min Bend Radius | Ampacity2 | ||||||
| Size | Strands | Phase Insulation Thickness | Size | Strands | Neutral Insulation Thickness | Phase (Over Insulation) | Completed Cable (Nominal) | Direct Burial | In Duct | |||
| AWG/Kcmil | No. | mils | AWG/Kcmil | No. | mils | inch | inch | lb/1000ft | inch | amps | amps | |
| Bard | 8 | 7 | 60 | 8 | 7 | 60 | 0.262 | 0.524 | 67 | 2.1 | 70 | 55 |
| Claflin | 6 | 7 | 60 | 6 | 7 | 60 | 0.298 | 0.596 | 91 | 2.4 | 95 | 70 |
| Delgado | 4 | 7 | 60 | 4 | 7 | 60 | 0.345 | 0.690 | 128 | 2.8 | 125 | 90 |
| Everett | 2 | 7 | 60 | 2 | 7 | 60 | 0.403 | 0.806 | 185 | 3.2 | 165 | 120 |
1. Data are approximate and subject to normal manufacturing tolerances.
2. Ampacity values shown are for non-NEC applications and based on 90°C conductor temperature, 20°C ambient temperature, earth RHO 90, 100% load factor, with neutral carrying only unbalanced loads. For NEC-compliant applications, reference NEC (NFPA 70) 310.16.
