APPLICATION
Directly buried or installed in ducts for 600 volt secondary distribution.
PRODUCT FEATURES
Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation. Insulated conductors surface printed, neutral, triple yellow striped or solid yellow. Black neutrals may be specified if desired.
STANDARDS:
UL Standard 854 for Type USE-2
ASTM B-230, B-231 and ICEA S-105-692
Federal Specification JC-30B NEC
SPECIFICATIONS

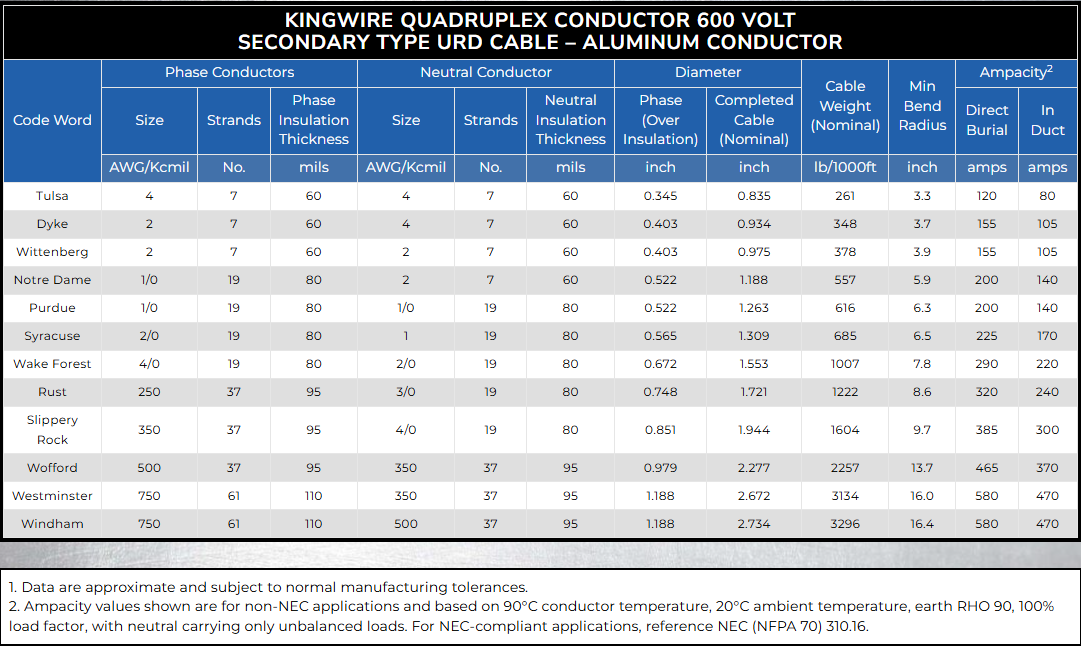

KINGWIRE QUADRUPLEX CONDUCTOR 600 VOLT
|
|||||||||||
| Code Word | Phase Conductors | Neutral Conductor | Single Phase Conductor (in) |
Outside Diameter (in) |
Weight per 1000 ft. (lbs) |
Ampacity | |||||
| Size AWG |
Strand | Insulation Thickness (MLS) |
Size AWG |
Strand | Insulation Thickness (MLS) |
Direct Burial | In Duct | ||||
| Tulsa | 4 | 7/w | 60 | 4 | 7/w | 60 | .345 | .833 | 258 | 119 | 85 |
| Dyke | 2 | 7/w | 60 | 4 | 7/w | 60 | .403 | .938 | 346 | 153 | 115 |
| Wittenberg | 2 | 7/w | 60 | 2 | 7/w | 60 | .403 | .973 | 375 | 153 | 115 |
| Notre Dame | 1/0 | 19/w | 80 | 2 | 7/w | 60 | .522 | 1.188 | 541 | 198 | 150 |
| Purdue | 1/0 | 19/w | 80 | 1/0 | 19/w | 80 | .522 | 1.260 | 596 | 198 | 150 |
| Syracuse | 2/0 | 19/w | 80 | 1 | 19/w | 80 | .566 | 1.316 | 664 | 225 | 170 |
| Wake Forest | 4/0 | 19/w | 80 | 2/0 | 19/w | 80 | .672 | 1.560 | 979 | 290 | 225 |
| Rust | 250 | 37/w | 95 | 3/0 | 19/w | 80 | .748 | 1.725 | 1,176 | 319 | 240 |
| Slippery Rock | 350 | 37/w | 95 | 4/0 | 19/w | 80 | .851 | 1.945 | 1,544 | 385 | 305 |
| Wofford | 500 | 37/w | 95 | 350 | 37/w | 95 | .851 | 2.348 | 2,174 | 467 | 420 |
| Westminster | 750 | 61/w | 110 | 350 | 37/w | 95 | .979 | 2.722 | 2,816 | 615 | 492 |
Ampacity: 90°C conductor temperature, 20°C ambient, RHO 90, 100% load factor for three conductor triplex with neutral carrying only unbalanced load.
All Yellow Extruded Stripe, cable is XLP insulation.
* To determine correct ampacity by conductor size, please consult the National Electric Code, latest edition.
The above data are approximate and subject to normal manufacturing tolerances.
