APPLICATION:
Type MC Cable can be used to replace wire and conduit in applications such as cable tray, power lighting, service feeders and branch circuits as permitted by the National Electrical Code. KINGWIRE’S aluminum MC cable is suitable for use in concealed or exposed installations including environmental air spaces per NEC 300.22. In addition, KINGWIRE’S aluminum MC is suitable for use in vertical applications if installed per the NEC requirements of section 300-19 (a) and section 330.30.
PRODUCT FEATURES:

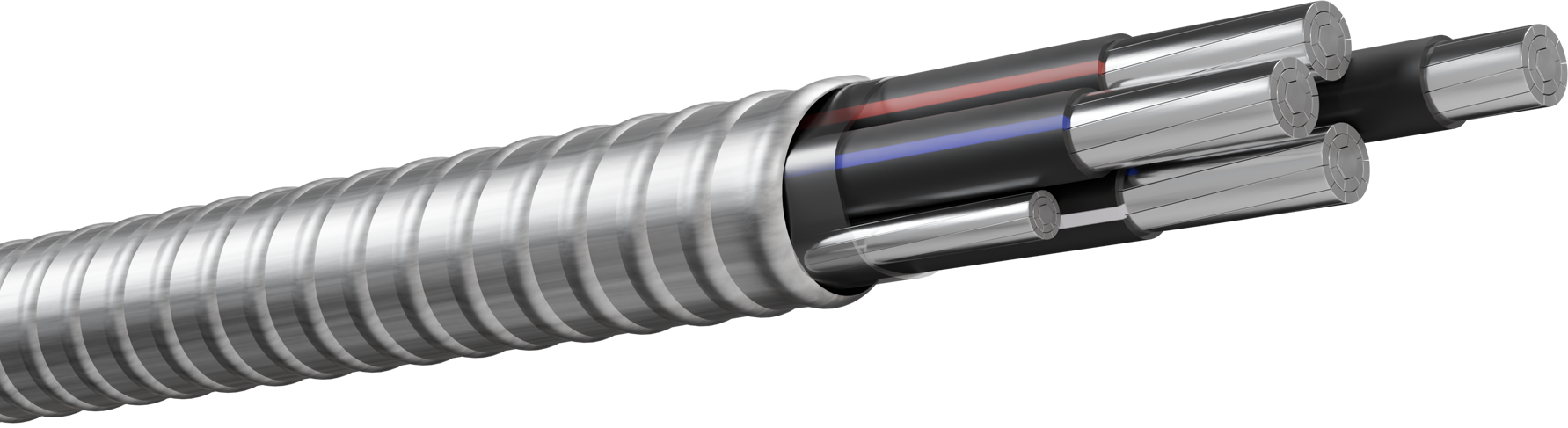

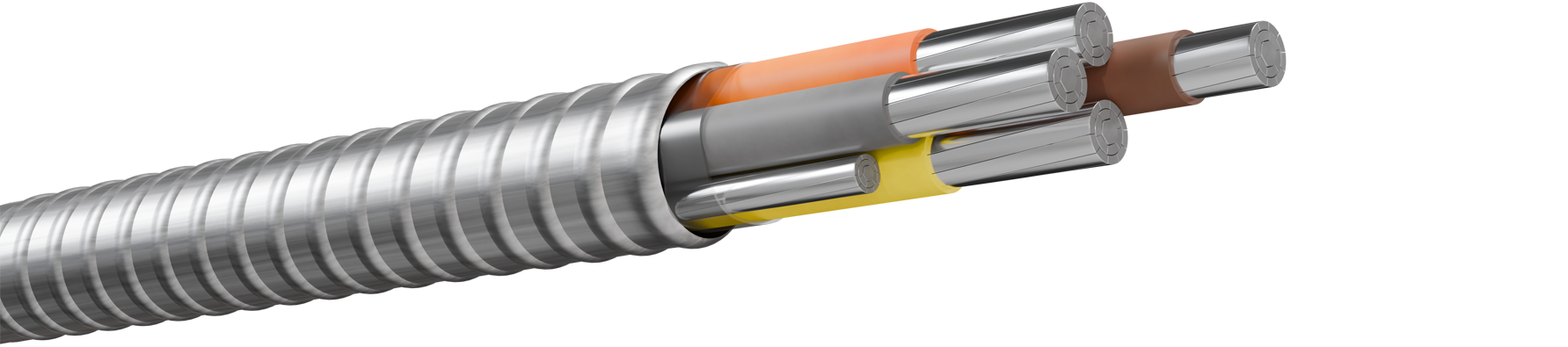

Type MC cable is constructed with 3 or 4 8000 series compact stranded aluminum XHHW-2 conductors cabled with a bare or insulated 8000 series aluminum grounding conductor. A binder identification baring tape is wrapped over the cabled assembly. Aluminum armor is interlocked over the conductor assembly. All insulated conductors are phase identified.
STANDARDS:
UL Standard 44, UL standard 1569, Federal Specification JC-30B, ICEA S-66-524 and requirements of the National Electrical Code.
Compliant to RoHS, Directive 2002/95/EC, ICEA S-95-658, NEMA WC 70.
SPECIFICATIONS

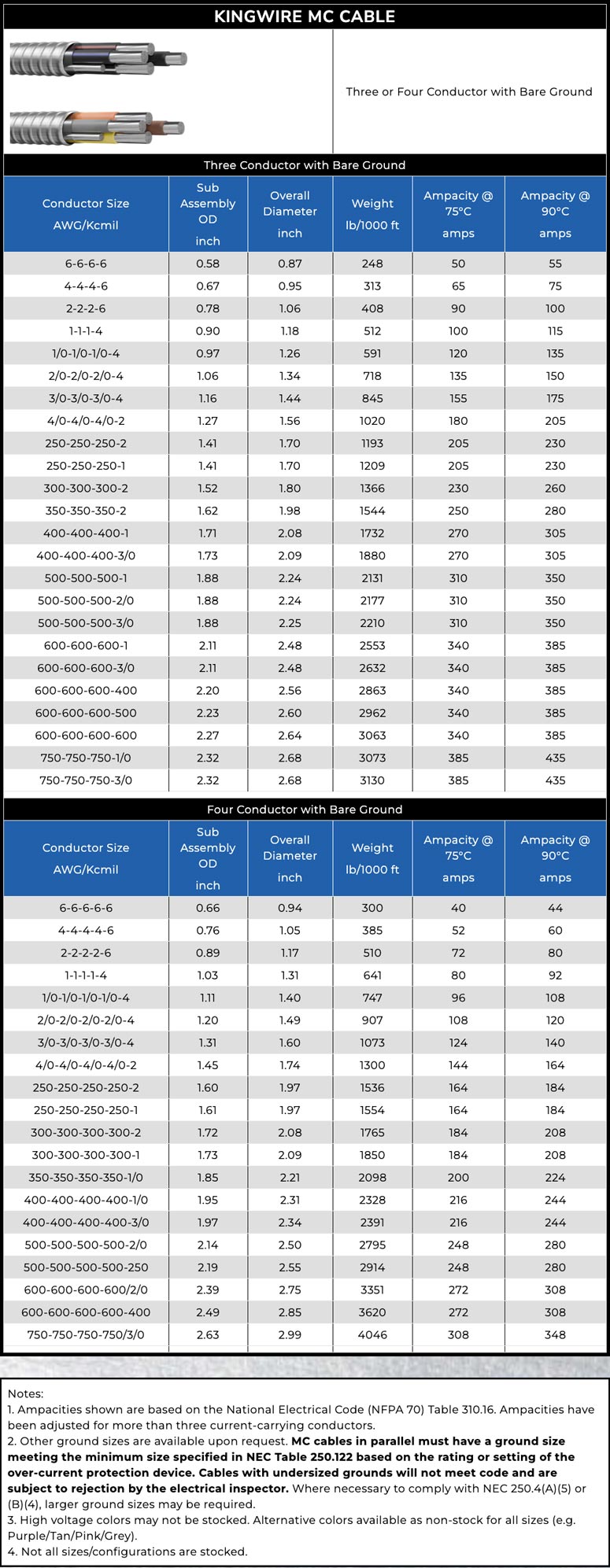

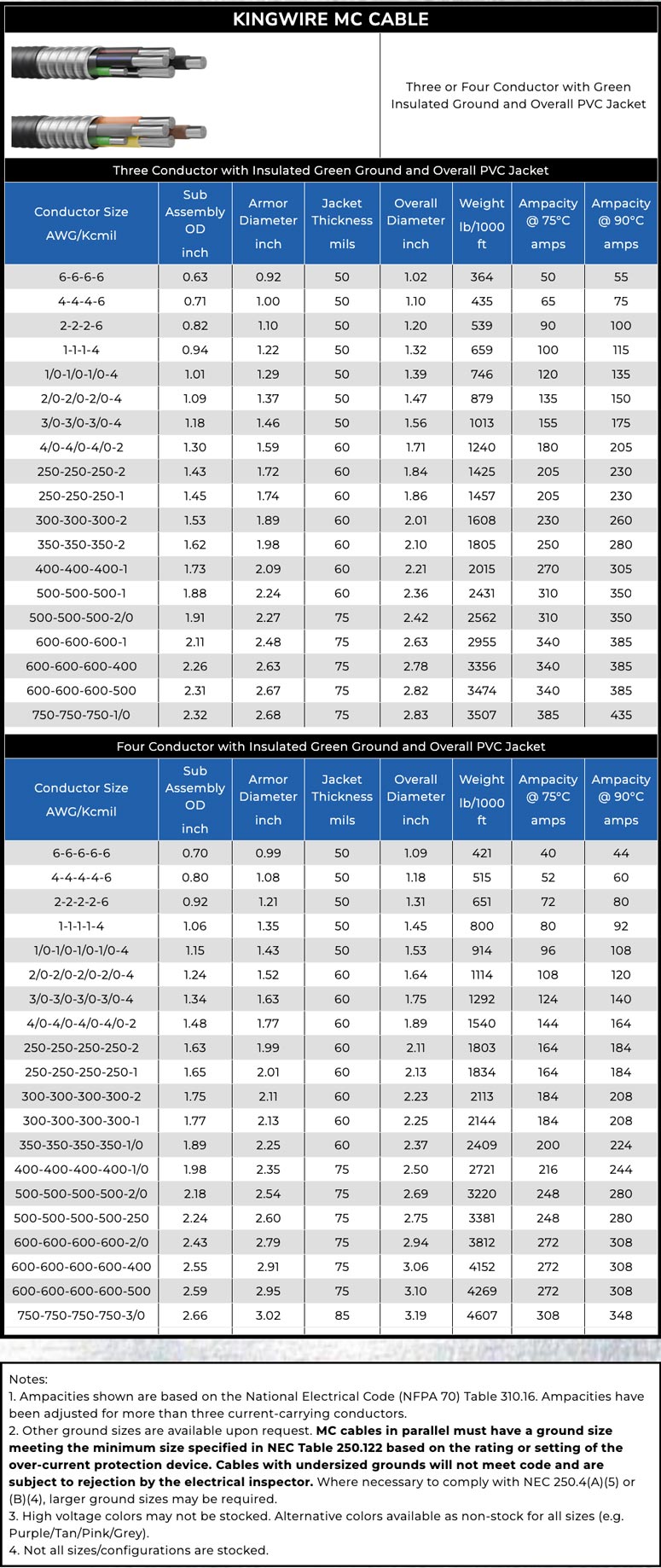

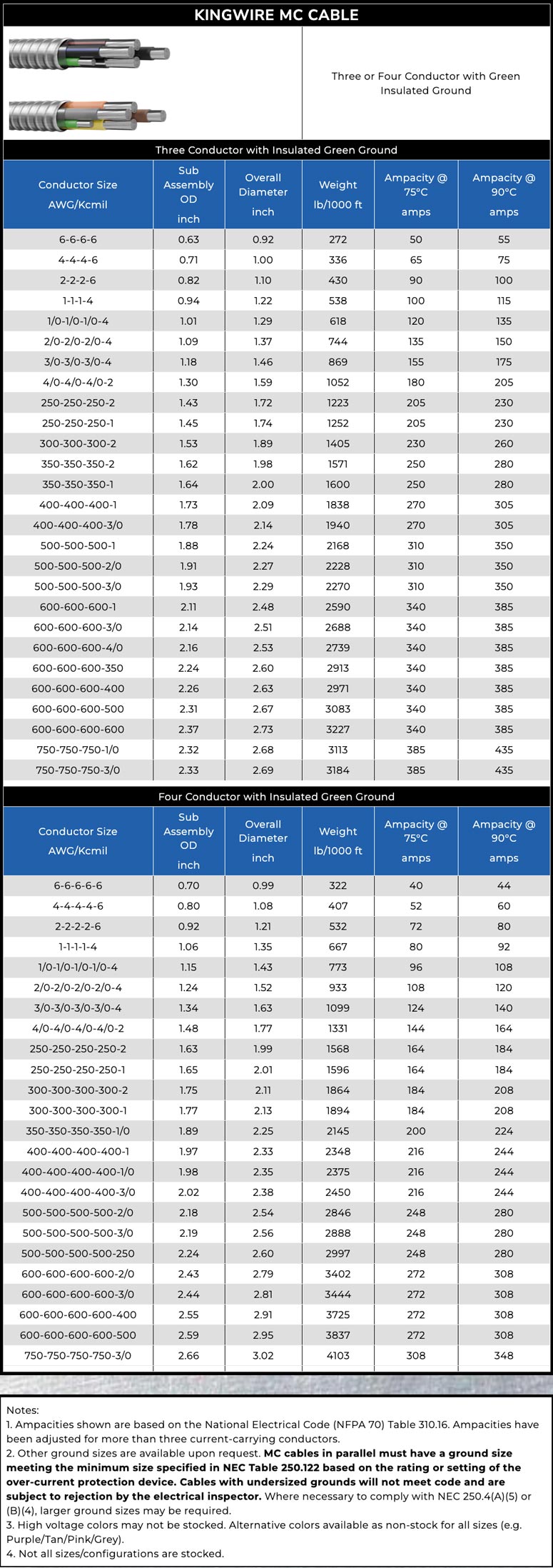

KINGWIRE MC CABLE |
|||||
| Cond. Size AWG or MCM | Sub Assembly (O.D.) | Overall Diameter (in) | Weight per 1000 ft. (lbs) | Ampacity (amps) 75° C | Ampacity (amps) 90° C |
| Three Conductor with Ground | |||||
| 6-6-6-6 | 0.57 | 0.78 | 237 | 50 | 55 |
| 4-4-4-6 | 0.66 | 0.88 | 298 | 65 | 75 |
| 2-2-2-6 | 0.78 | 1 | 411 | 90 | 100 |
| 1-1-1-4 | 0.89 | 1.11 | 496 | 100 | 115 |
| 1/0-1/0-1/0-4 | 0.97 | 1.19 | 578 | 120 | 135 |
| 2/0-2/0-2/0-4 | 1.06 | 1.27 | 678 | 135 | 150 |
| 3/0-3/0-3/0-4 | 1.16 | 1.38 | 833 | 155 | 175 |
| 4/0-4/0-4/0-2 | 1.27 | 1.59 | 1089 | 180 | 205 |
| 250-250-250-2 | 1.42 | 1.73 | 1275 | 205 | 230 |
| 300-300-300-2 | 1.51 | 1.79 | 1361 | 230 | 255 |
| 350-350-350-2 | 1.62 | 1.94 | 1653 | 250 | 280 |
| 400-400-400-1 | 1.72 | 2.04 | 1830 | 270 | 305 |
| 500-500-500-1 | 1.88 | 2.2 | 2177 | 310 | 350 |
| 600-600-600-1 | 2.1 | 2.4 | 2608 | 340 | 385 |
| 750-750-750-1/0 | 2.3 | 2.5 | 3118 | 385 | 435 |
| Four Conductor with Ground | |||||
| 6-6-6-6-6 | 0.70 | 0.92 | 278 | 50 | 55 |
| 4-4-4-4-6 | 0.77 | 1.04 | 360 | 65 | 75 |
| 2-2-2-2-6 | 0.89 | 1.10 | 482 | 72 | 100 |
| 1-1-1-1-4 | 0.99 | 1.21 | 619 | 80 | 115 |
| 1/0-1/0-1/0-1/0-4 | 1.08 | 1.3 | 727 | 92 | 135 |
| 2/0-2/0-2/0-2/0-4 | 1.18 | 1.4 | 858 | 108 | 150 |
| 3/0-3/0-3/0-3/0-4 | 1.3 | 1.61 | 1138 | 124 | 175 |
| 4/0-4/0-4/0-4/0-2 | 1.42 | 1.74 | 1374 | 144 | 205 |
| 250-250-250-250-1 | 1.58 | 1.9 | 1634 | 184 | 230 |
| 300-300-300-300-1 | 1.70 | 1.99 | 1722 | 230 | 255 |
| 350-350-350-350-1/0 | 1.82 | 2.13 | 1969 | 250 | 280 |
| 400-400-400-400-1/0 | 1.91 | 2.20 | 2189 | 300 | 305 |
| 500-500-500-500-2/0 | 2.11 | 2.35 | 2653 | 310 | 350 |
| 600-600-600-600/2/0 | 2.35 | 2.67 | 3177 | 340 | 385 |
| 750-750-750-750/3/0 | 2.60 | 2.86 | 3858 | 385 | 435 |
Notes:
1. Ampacities shown are for general use as specified by the National Electrical Code, Section 310.15
Under normal conditions four conductor ampacities are not derated as shown above. If NEC Section 310.15 (b) (4) (a) does not consider the neutral as current carrying conductor, use ampacities listed for the three conductor cable.
2. Standard lengths are subject to normal manufacturing tolerance of +/- 10%
3. Other conductor sizes available upon request. Other ground sizes are available upon request.
