MC CABLE

TYPE MC CABLE

Download Spec Sheet

TYPE MC CABLE

Low Voltage Colors

High Voltage Colors4

Download Spec Sheet

APPLICATION:

KINGWIRE’S aluminum MC Cable can be used to replace wire and conduit in applications such as cable tray, power lighting, service feeders and branch circuits as permitted by the National Electrical Code. Suitable for use in concealed or exposed installations including environmental air spaces per NEC 300.22 (when unjacketed), and in vertical applications if installed per the requirements of NEC 300.19(A) and 330.30. Suitable for Class I Div 2, Class II Div 2, Class III Div 1 Hazardous Locations.
PVC-jacketed MC cable is sunlight resistant and suitable for use in wet locations per NEC 330.10(A)(11).



PRODUCT FEATURES:

Type MC cable is constructed with 3 or 4 8000 series compact stranded aluminum XHHW-2 conductors cabled with a bare or insulated 8000 series aluminum grounding conductor. A binder identification baring tape is wrapped over the cabled assembly. Aluminum armor is interlocked over the conductor assembly. All insulated conductors are phase identified.



STANDARDS:

UL 44
UL 1569
ASTM B800, B801
ICEA S-95-658 (NEMA WC 70)
Federal Specification A-A59544 (formerly J-C-30B)
NFPA 70 (National Electrical Code), Article 330
Compliant to RoHS, Directive 2011/65/EU

SPECIFICATIONS

KINGWIRE MC CABLE

Three or Four Conductor with Bare Ground
Three Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6 0.58 0.87 248 50 55
4-4-4-6 0.67 0.95 313 65 75
2-2-2-6 0.78 1.06 408 90 100
1-1-1-4 0.90 1.18 512 100 115
1/0-1/0-1/0-4 0.97 1.26 591 120 135
2/0-2/0-2/0-4 1.06 1.34 718 135 150
3/0-3/0-3/0-4 1.16 1.44 845 155 175
4/0-4/0-4/0-2 1.27 1.56 1020 180 205
250-250-250-2 1.41 1.70 1193 205 230
250-250-250-1 1.41 1.70 1209 205 230
300-300-300-2 1.52 1.80 1366 230 260
350-350-350-2 1.62 1.98 1544 250 280
400-400-400-1 1.71 2.08 1732 270 305
400-400-400-3/0 1.73 2.09 1880 270 305
500-500-500-1 1.88 2.24 2131 310 350
500-500-500-2/0 1.88 2.24 2177 310 350
500-500-500-3/0 1.88 2.25 2210 310 350
600-600-600-1 2.11 2.48 2553 340 385
600-600-600-3/0 2.11 2.48 2632 340 385
600-600-600-400 2.20 2.56 2863 340 385
600-600-600-500 2.23 2.60 2962 340 385
600-600-600-600 2.27 2.64 3063 340 385
750-750-750-1/0 2.32 2.68 3073 385 435
750-750-750-3/0 2.32 2.68 3130 385 435
Four Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6-6 0.66 0.94 300 40 44
4-4-4-4-6 0.76 1.05 385 52 60
2-2-2-2-6 0.89 1.17 510 72 80
1-1-1-1-4 1.03 1.31 641 80 92
1/0-1/0-1/0-1/0-4 1.11 1.40 747 96 108
2/0-2/0-2/0-2/0-4 1.20 1.49 907 108 120
3/0-3/0-3/0-3/0-4 1.31 1.60 1073 124 140
4/0-4/0-4/0-4/0-2 1.45 1.74 1300 144 164
250-250-250-250-2 1.60 1.97 1536 164 184
250-250-250-250-1 1.61 1.97 1554 164 184
300-300-300-300-2 1.72 2.08 1765 184 208
300-300-300-300-1 1.73 2.09 1850 184 208
350-350-350-350-1/0 1.85 2.21 2098 200 224
400-400-400-400-1/0 1.95 2.31 2328 216 244
400-400-400-400-3/0 1.97 2.34 2391 216 244
500-500-500-500-2/0 2.14 2.50 2795 248 280
500-500-500-500-250 2.19 2.55 2914 248 280
600-600-600-600/2/0 2.39 2.75 3351 272 308
600-600-600-600-400 2.49 2.85 3620 272 308
750-750-750-750/3/0 2.63 2.99 4046 308 348

Notes:
1. Ampacities shown are based on the National Electrical Code (NFPA 70) Table 310.16. Ampacities have been adjusted for more than three current-carrying conductors.
2. Standard lengths are subject to normal manufacturing tolerance of +/- 10%
3. Other ground sizes are available upon request. MC cables in parallel must have a ground size meeting the minimum size specified in NEC Table 250.122 based on the rating or setting of the over-current protection device. Cables with undersized grounds will not meet code and are subject to rejection by the electrical inspector. Where necessary to comply with NEC 250.4(A)(5) or (B)(4), larger ground sizes may be required.
4. High voltage colors may not be stocked. Not all sizes are stocked.

KINGWIRE MC CABLE

Three or Four Conductor with Green Insulated Ground
Three Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6 0.63 0.92 272 50 55
4-4-4-6 0.71 1.00 336 65 75
2-2-2-6 0.82 1.10 430 90 100
1-1-1-4 0.94 1.22 538 100 115
1/0-1/0-1/0-4 1.01 1.29 618 120 135
2/0-2/0-2/0-4 1.09 1.37 744 135 150
3/0-3/0-3/0-4 1.18 1.46 869 155 175
4/0-4/0-4/0-2 1.30 1.59 1052 180 205
250-250-250-2 1.43 1.72 1223 205 230
250-250-250-1 1.45 1.74 1252 205 230
300-300-300-2 1.53 1.89 1405 230 260
350-350-350-2 1.62 1.98 1571 250 280
350-350-350-1 1.64 2.00 1600 250 280
400-400-400-1 1.73 2.09 1838 270 305
400-400-400-3/0 1.78 2.14 1940 270 305
500-500-500-1 1.88 2.24 2168 310 350
500-500-500-2/0 1.91 2.27 2228 310 350
500-500-500-3/0 1.93 2.29 2270 310 350
600-600-600-1 2.11 2.48 2590 340 385
600-600-600-3/0 2.14 2.51 2688 340 385
600-600-600-4/0 2.16 2.53 2739 340 385
600-600-600-350 2.24 2.60 2913 340 385
600-600-600-400 2.26 2.63 2971 340 385
600-600-600-500 2.31 2.67 3083 340 385
600-600-600-600 2.37 2.73 3227 340 385
750-750-750-1/0 2.32 2.68 3113 385 435
750-750-750-3/0 2.33 2.69 3184 385 435
Four Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6-6 0.70 0.99 322 40 44
4-4-4-4-6 0.80 1.08 407 52 60
2-2-2-2-6 0.92 1.21 532 72 80
1-1-1-1-4 1.06 1.35 667 80 92
1/0-1/0-1/0-1/0-4 1.15 1.43 773 96 108
2/0-2/0-2/0-2/0-4 1.24 1.52 933 108 120
3/0-3/0-3/0-3/0-4 1.34 1.63 1099 124 140
4/0-4/0-4/0-4/0-2 1.48 1.77 1331 144 164
250-250-250-250-2 1.63 1.99 1568 164 184
250-250-250-250-1 1.65 2.01 1596 164 184
300-300-300-300-2 1.75 2.11 1864 184 208
300-300-300-300-1 1.77 2.13 1894 184 208
350-350-350-350-1/0 1.89 2.25 2145 200 224
400-400-400-400-1 1.97 2.33 2348 216 244
400-400-400-400-1/0 1.98 2.35 2375 216 244
400-400-400-400-3/0 2.02 2.38 2450 216 244
500-500-500-500-2/0 2.18 2.54 2846 248 280
500-500-500-500-3/0 2.19 2.56 2888 248 280
500-500-500-500-250 2.24 2.60 2997 248 280
600-600-600-600-2/0 2.43 2.79 3402 272 308
600-600-600-600-3/0 2.44 2.81 3444 272 308
600-600-600-600-400 2.55 2.91 3725 272 308
600-600-600-600-500 2.59 2.95 3837 272 308
750-750-750-750-3/0 2.66 3.02 4103 308 348

Notes:
1. Ampacities shown are based on the National Electrical Code (NFPA 70) Table 310.16. Ampacities have been adjusted for more than three current-carrying conductors.
2. Standard lengths are subject to normal manufacturing tolerance of +/- 10%
3. Other ground sizes are available upon request. MC cables in parallel must have a ground size meeting the minimum size specified in NEC Table 250.122 based on the rating or setting of the over-current protection device. Cables with undersized grounds will not meet code and are subject to rejection by the electrical inspector. Where necessary to comply with NEC 250.4(A)(5) or (B)(4), larger ground sizes may be required.
4. High voltage colors may not be stocked. Not all sizes are stocked.

KINGWIRE MC CABLE

Three or Four Conductor with Green Insulated Ground and Overall PVC Jacket
Three Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Armor Diameter

inch

 Jacket Thickness

mils

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6 0.63 0.92 50 1.02 364 50 55
4-4-4-6 0.71 1.00 50 1.10 435 65 75
2-2-2-6 0.82 1.10 50 1.20 539 90 100
1-1-1-4 0.94 1.22 50 1.32 659 100 115
1/0-1/0-1/0-4 1.01 1.29 50 1.39 746 120 135
2/0-2/0-2/0-4 1.09 1.37 50 1.47 879 135 150
3/0-3/0-3/0-4 1.18 1.46 50 1.56 1013 155 175
4/0-4/0-4/0-2 1.30 1.59 60 1.71 1240 180 205
250-250-250-2 1.43 1.72 60 1.84 1425 205 230
250-250-250-1 1.45 1.74 60 1.86 1457 205 230
300-300-300-2 1.53 1.89 60 2.01 1608 230 260
350-350-350-2 1.62 1.98 60 2.10 1805 250 280
400-400-400-1 1.73 2.09 60 2.21 2015 270 305
500-500-500-1 1.88 2.24 60 2.36 2431 310 350
500-500-500-2/0 1.91 2.27 75 2.42 2562 310 350
600-600-600-1 2.11 2.48 75 2.63 2955 340 385
600-600-600-400 2.26 2.63 75 2.78 3356 340 385
600-600-600-500 2.31 2.67 75 2.82 3474 340 385
750-750-750-1/0 2.32 2.68 75 2.83 3507 385 435
Four Conductor
Conductor Size

AWG/Kcmil

 Sub Assembly OD

inch

 Armor Diameter

inch

 Jacket Thickness

mils

 Overall Diameter

inch

 Weight

lb/1000 ft

 Ampacity @ 75°C

amps

 Ampacity @ 90°C

amps
6-6-6-6-6 0.70 0.99 50 1.09 421 40 44
4-4-4-4-6 0.80 1.08 50 1.18 515 52 60
2-2-2-2-6 0.92 1.21 50 1.31 651 72 80
1-1-1-1-4 1.06 1.35 50 1.45 800 80 92
1/0-1/0-1/0-1/0-4 1.15 1.43 50 1.53 914 96 108
2/0-2/0-2/0-2/0-4 1.24 1.52 60 1.64 1114 108 120
3/0-3/0-3/0-3/0-4 1.34 1.63 60 1.75 1292 124 140
4/0-4/0-4/0-4/0-2 1.48 1.77 60 1.89 1540 144 164
250-250-250-250-2 1.63 1.99 60 2.11 1803 164 184
250-250-250-250-1 1.65 2.01 60 2.13 1834 164 184
300-300-300-300-2 1.75 2.11 60 2.23 2113 184 208
300-300-300-300-1 1.77 2.13 60 2.25 2144 184 208
350-350-350-350-1/0 1.89 2.25 60 2.37 2409 200 224
400-400-400-400-1/0 1.98 2.35 75 2.50 2721 216 244
500-500-500-500-2/0 2.18 2.54 75 2.69 3220 248 280
500-500-500-500-250 2.24 2.60 75 2.75 3381 248 280
600-600-600-600-2/0 2.43 2.79 75 2.94 3812 272 308
600-600-600-600-400 2.55 2.91 75 3.06 4152 272 308
600-600-600-600-500 2.59 2.95 75 3.10 4269 272 308
750-750-750-750-3/0 2.66 3.02 85 3.19 4607 308 348

Notes:
1. Ampacities shown are based on the National Electrical Code (NFPA 70) Table 310.16. Ampacities have been adjusted for more than three current-carrying conductors.
2. Standard lengths are subject to normal manufacturing tolerance of +/- 10%
3. Other ground sizes are available upon request. MC cables in parallel must have a ground size meeting the minimum size specified in NEC Table 250.122 based on the rating or setting of the over-current protection device. Cables with undersized grounds will not meet code and are subject to rejection by the electrical inspector. Where necessary to comply with NEC 250.4(A)(5) or (B)(4), larger ground sizes may be required.
4. High voltage colors may not be stocked. Not all sizes are stocked.
5. PVC-jacketed MC is not stocked.

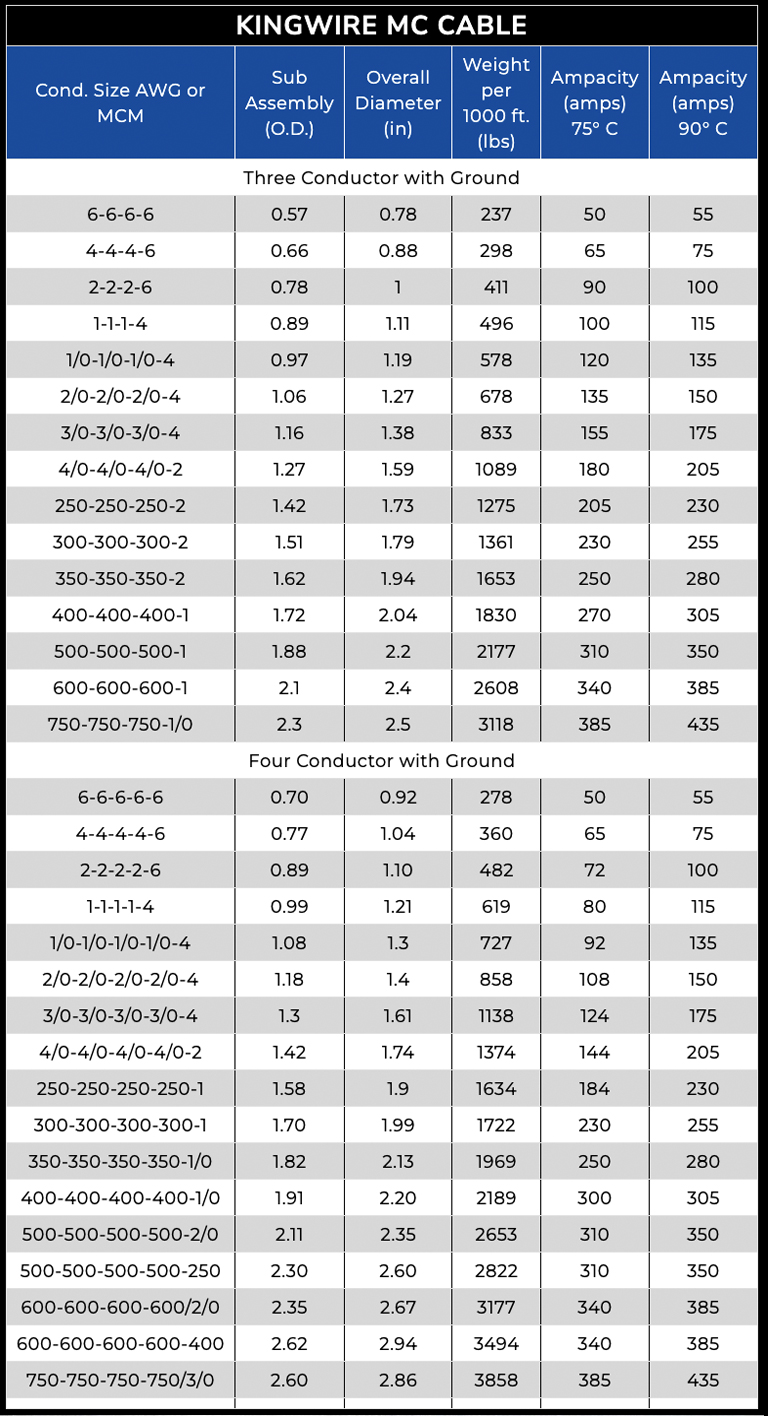

SPECIFICATIONS

Notes:
1. Ampacities shown are based on the National Electrical Code (NFPA 70) Table 310.16 for not more than three current-carrying conductors. For more than three current-carrying conductors or other adjustment factors, the values shown must be adjusted as per NEC 310.15(B) & (C).
2. Standard lengths are subject to normal manufacturing tolerance of +/- 10%
3. Other conductor sizes available upon request. Other ground sizes are available upon request.
